Getting started with MIDI Sprout

What's In the Box?

1. One MIDI Sprout

2. One pair of snap-on electrode leads (white)

2b. (not pictured) One pair of electrode clips for use on smaller plants. Included with MIDI Sprouts sold after August of 2018. This cable will be either blue or yellow.

3. Three pairs of reusable electrode pads

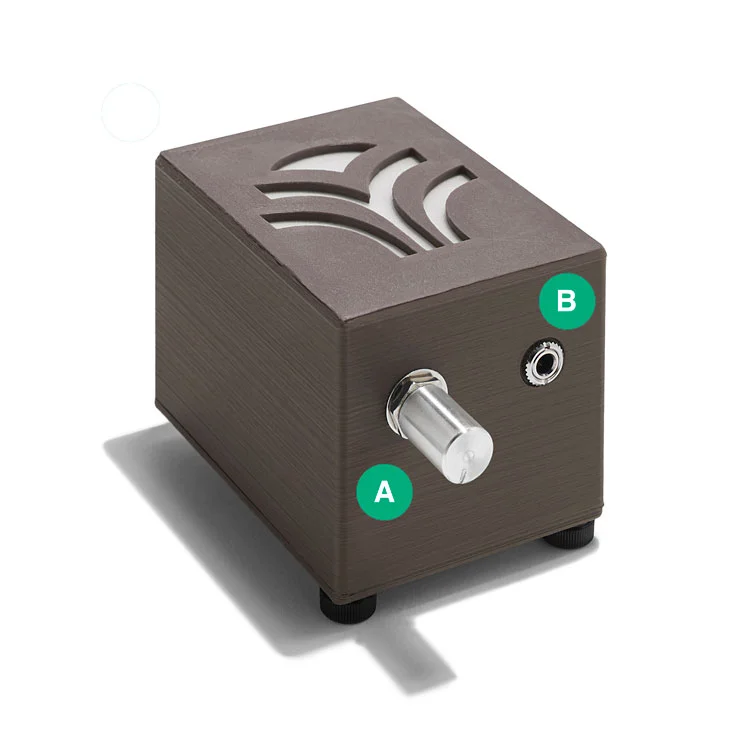

MIDI SPROUT FEATURES


A) ON/OFF + sensitivity knob. Turn clockwise to turn on, counterclockwise to turn off.
Greatest sensitivity is just past the ON position. Lowest sensitivity is established when turned all-the way clockwise.

B) DC 3.5mm input for electrode leads

C) MIDI Port to connect to iOS device via an iConnectMIDI+ (included with MIDI Sprout for iPhone) or to a synthesizer or DAW via MIDI cable.


26883692736_d99c14f901_k (1).jpg

INSTRUCTIONS

  1. Install batteries


  2. Connect your MIDI Sprout to a synthesizer or digital audio workstation using a MIDI cable.


  3. Prepare two leaves on your plant by gently cleaning them with soapy water (most plants purchased from nurseries and department stores are covered by fungicidal gel that can interfere with connection to the MIDI Sprout).


  4. Remove a pair of electrode pads (3 above) from their bag, keeping the plastic protectors on the pads.


  5. Connect the snaps from the leads (2 above) onto the back of the electrode pads. (it’s best to connect the snaps to the pads before placing them on your plant so as to avoid applying excess pressure on the leaf during the snap-on process)


  6. Remove the plastic protectors on the electrode pads and affix them to the leaves. Then put the plastic protectors back into the bag for the pads.


  7. Turn on your MIDI Sprout by turning the knob (A above) on the front of the device clockwise, This knob determines sensitivity of your MIDI Sprout, with its greatest sensitivity in the position closest to the ON position and it’s lowest sensitivity when turned fully clockwise.


  8. Your MIDI Sprout is now generating MIDI information from your plant and sending MIDI notes (channel 1) and MIDI CC messages (CC80) to your synthesizer or digital audio workstation.


  9. Have fun experimenting with different settings on your synth or design sound patches for your digital audio workstation.


TIPS FOR ELECTRODE USE AND REMOVAL FROM PLANTS

electrode pads vs. clips

The electrode pads that come with your MIDI Sprout are reusable and, in most cases, are safe to leave on your plant for months at a time.

The electrode clips (included with MIDI Sprouts after August 2018) are not intended for long-term use on plants. These are best used on plants that have leaves that are too small or delicate for pads. They also come in handy when using MIDI Sprout in situations where you want to switch from one plant to another quickly and easily.

SELECTING A PLANT OR LEAF

  1. Is the leaf you want to connect to larger than the electrode pad or clip? It’s best to be working with a larger leaf as this will provide more variation in conductivity and it will also be easier to remove your electrodes when you’re done listening.

  2. Is the leaf / plant strong enough to hold the electrode/clip or will it the electrode put stress on the plant and weigh it down? Using MIDI Sprout with a plant is a way of engaging in a conversation or partnership with your plant. Don’t stress it out. If it’s too small to handle the weight of the electrodes, let it be.

REMOVING ELECTRODE Pads FROM PLANTS

  1. Always remove the electrode pad by peeling it off of the leaf from the stem or branch towards the end of the leaf. This method works best with the structure of a leaf to ensure that it isn’t torn.

  2. Always support the leaf near the stem by holding it with one hand while peeling with the other. This ensures you don’t pull the leaf from its plant

  3. Be patient and take your time. It may sometimes take up to a minute to remove an electrode pad in a way that ensures you do no damage. Take this as an opportunity to thank your plants for singing to you. They will surely be happy you’ve taken this extra time.


Support and Resources

Troubleshooting

Have you tried all of the above and your MIDI Sprout isn't performing? Visit our troubleshooting page.
